Where Can Perforated Plate Be Used?

Where Can Perforated Plate Be Used?

Aug 09,2023

Perforated plates, also known as perforated acoustic panels, have specific properties that make them suitable for reducing noise levels and improving acoustic comfort in various environments.

Where Can Perforated Plate Be Used?

Sanle calcium silicate board can be used for the interior ceilings of vessels, subway projects, and other high-rise buildings.

Here are some other common places where perforated sound-absorbing boards can be used:
● Commercial Spaces
● Healthcare Facilities
● Hospitality Sector
● Residential Spaces
● Transportation Hubs
● Gymnasiums and Sports Facilities
● Industrial Settings
● Public Buildings

It's important to note that the specific applications of perforated plates can vary based on factors like the material used, the size and shape of the perforations, and the requirements of the intended use. Additionally, the choice of material, perforation pattern, and thickness will depend on the desired functionality and aesthetics for each application.

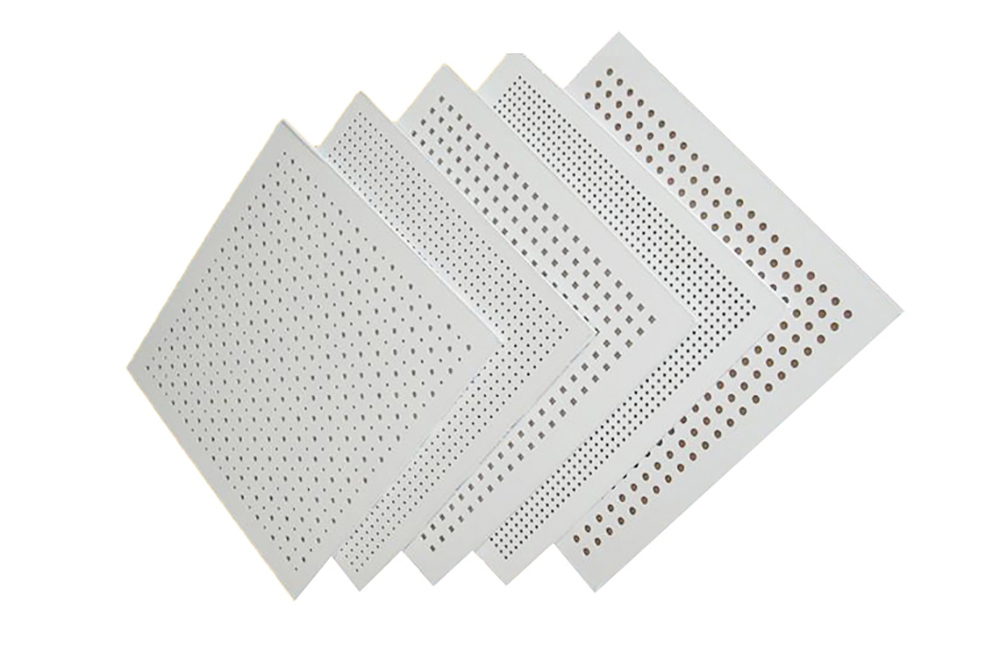

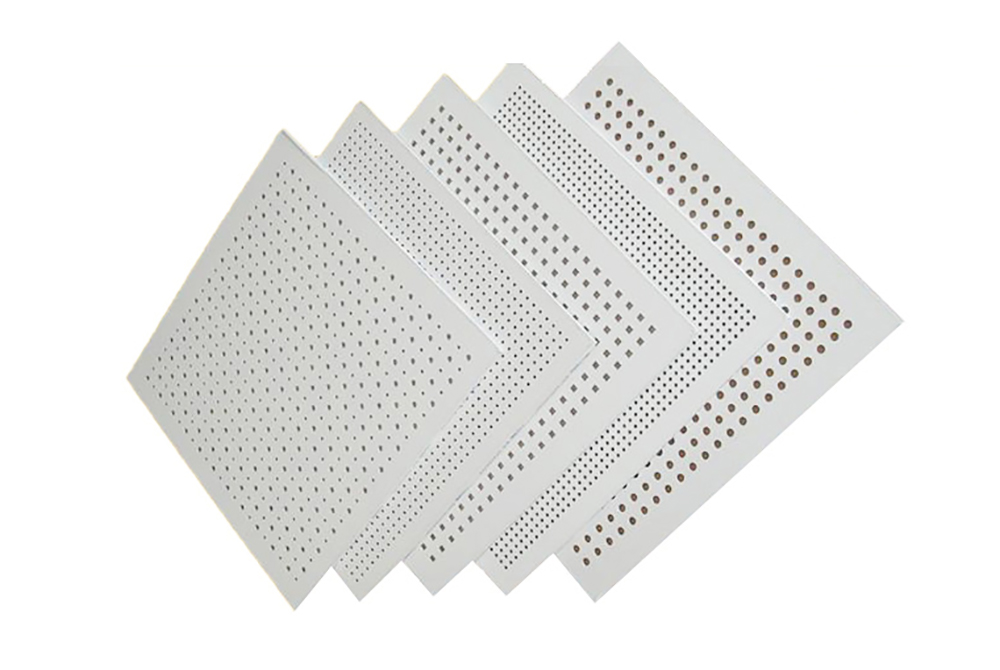

Sanle Perforated Plate

A perforated plate is a kind of perforated sound-absorbing board, the substrate material is Sanle calcium silicate board with medium density has excellent features, with excellent sound-absorbing functions, designed for both the acoustic requirements, The perforated calcium silicate plate has a variety of patterns and sizes of holes. The principle of sound absorption is that there are a large number of tiny connected pores inside the material.

Perforated Plate


Thickness(mm) Width(mm) Length(mm) Weight(kg/pcs)
45052 595/603 595/603 3.5


Deviation in thickness: ±0.5mm Density Density: 1100—1300kg/m3
Bending strength: ≥ 12MPa(EMC) Modulus of Elasticity: 7100±500MPa(Wet)
Moisture content: ≤ 10% Wet expansion: ≤ 0.2%
Thermal Conductivity: ≤ 0.3W/(m.K) Frost Resistance: -30 Celsius
Temperature resistance ±120 Celsius Incombustibility A grade fireproof


● Fireproof Class A1, neither toxic gas emission nor black smoke in case of burning
● Easy to Install, standardized production of the product
● Antibacterial surface
● Environmental friendly, no VOC gas when installation
● Low thermal conductivity
● Good durability and long service life

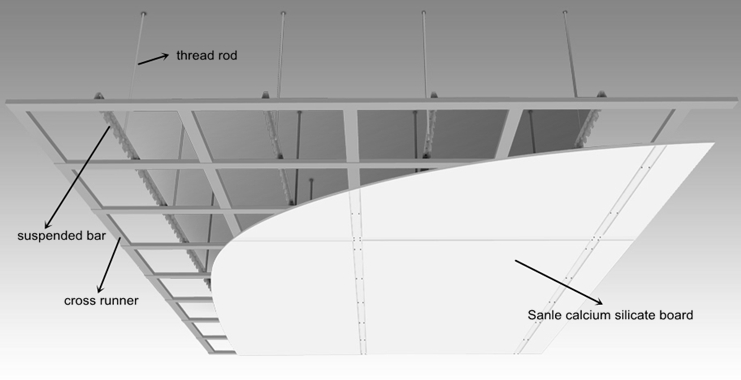

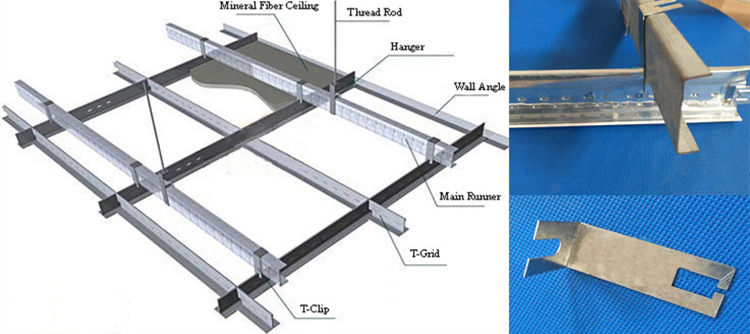

Perforated Plate Installation
Install Perforated Plate

The specific choice of panel design, installation location, and material will depend on the requirements and aesthetics of each space. You are welcome to find more detail about the perforated plate in Sanle.
